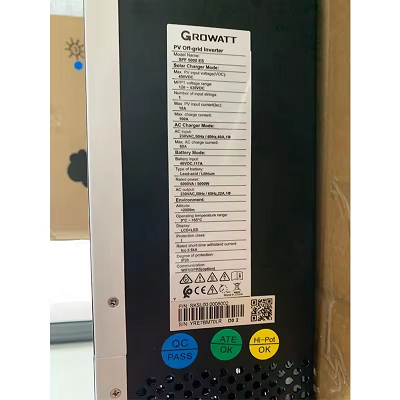

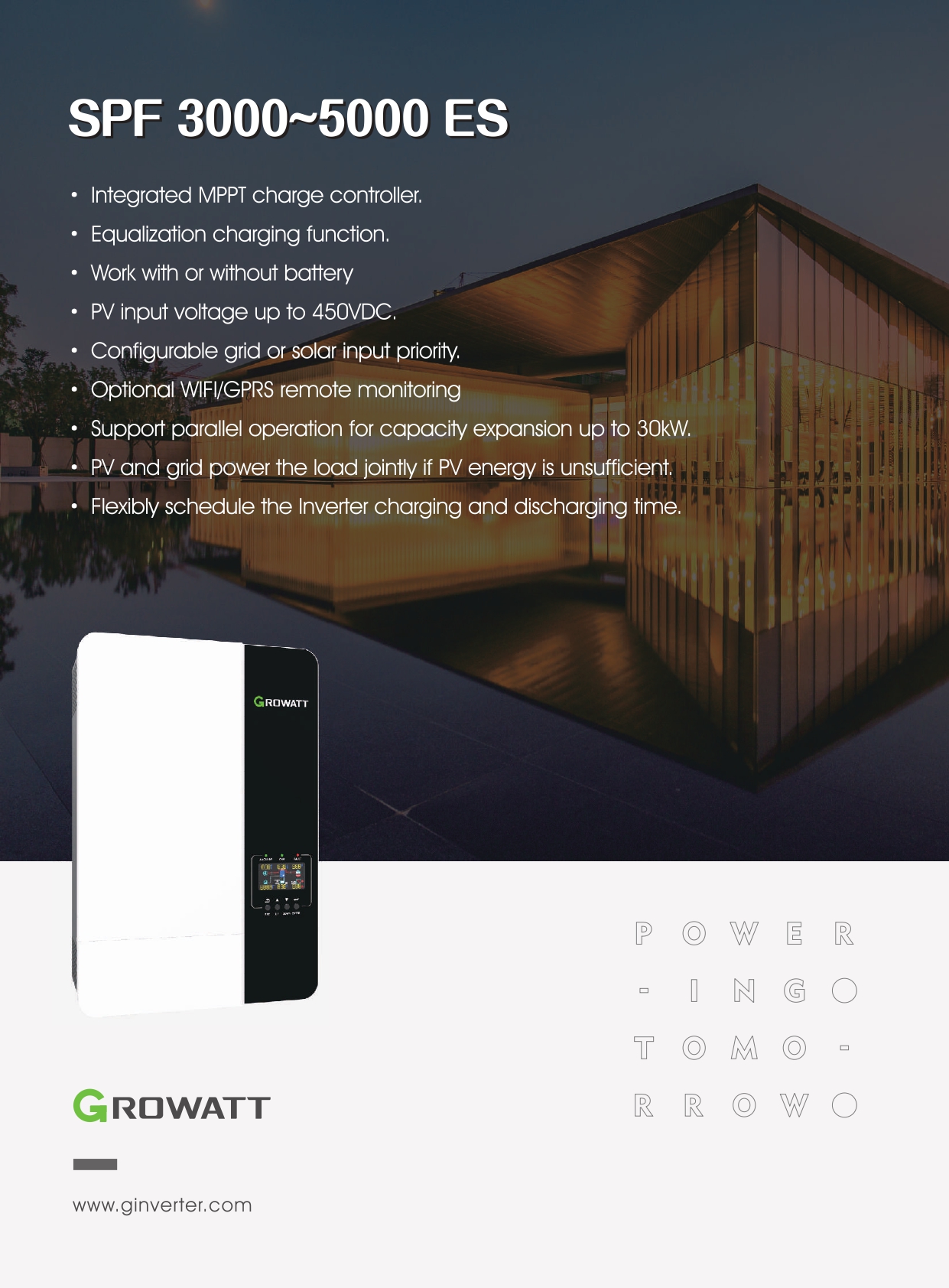

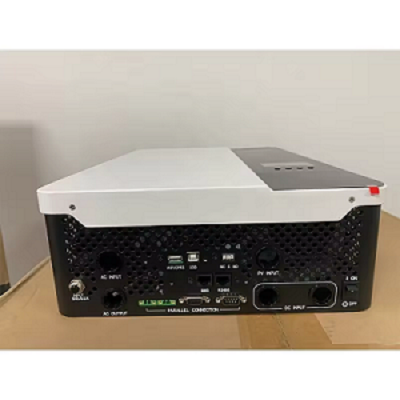

Growatt SPF 3-5kw ES Off-grid Single phase Inverter 3500W Solar Power Inverter for Off-grid system

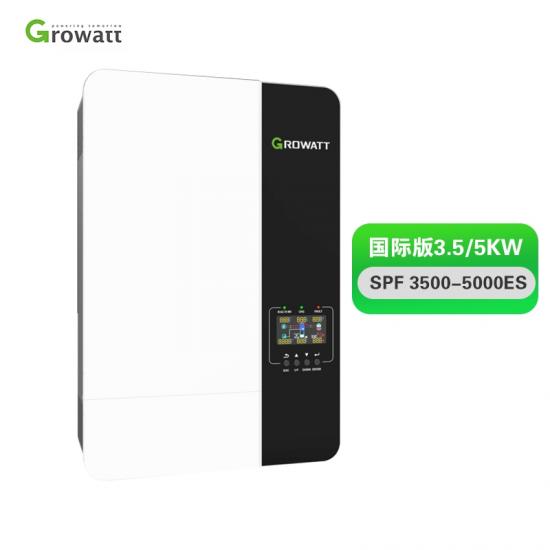

Growatt SPF 3500 ES 3.5KW Off-grid Single phase Inverter 3500W Solar Power Inverter for Off-grid system

  • Brand:

    Invt
  • Item NO.:

    Growatt SPF 3500 ES
  • Order(MOQ):

    1
  • Payment:

    T/T,L/C
  • Price:

    $410/430
  • Product Origin:

    China
  • Color:

    White with black
  • Shipping Port:

    Shanghai Ningbo Qingdao
  • Lead Time:

    within 2 weeks
  • output power

    3kw 4kw 5kw
  • Product Detail

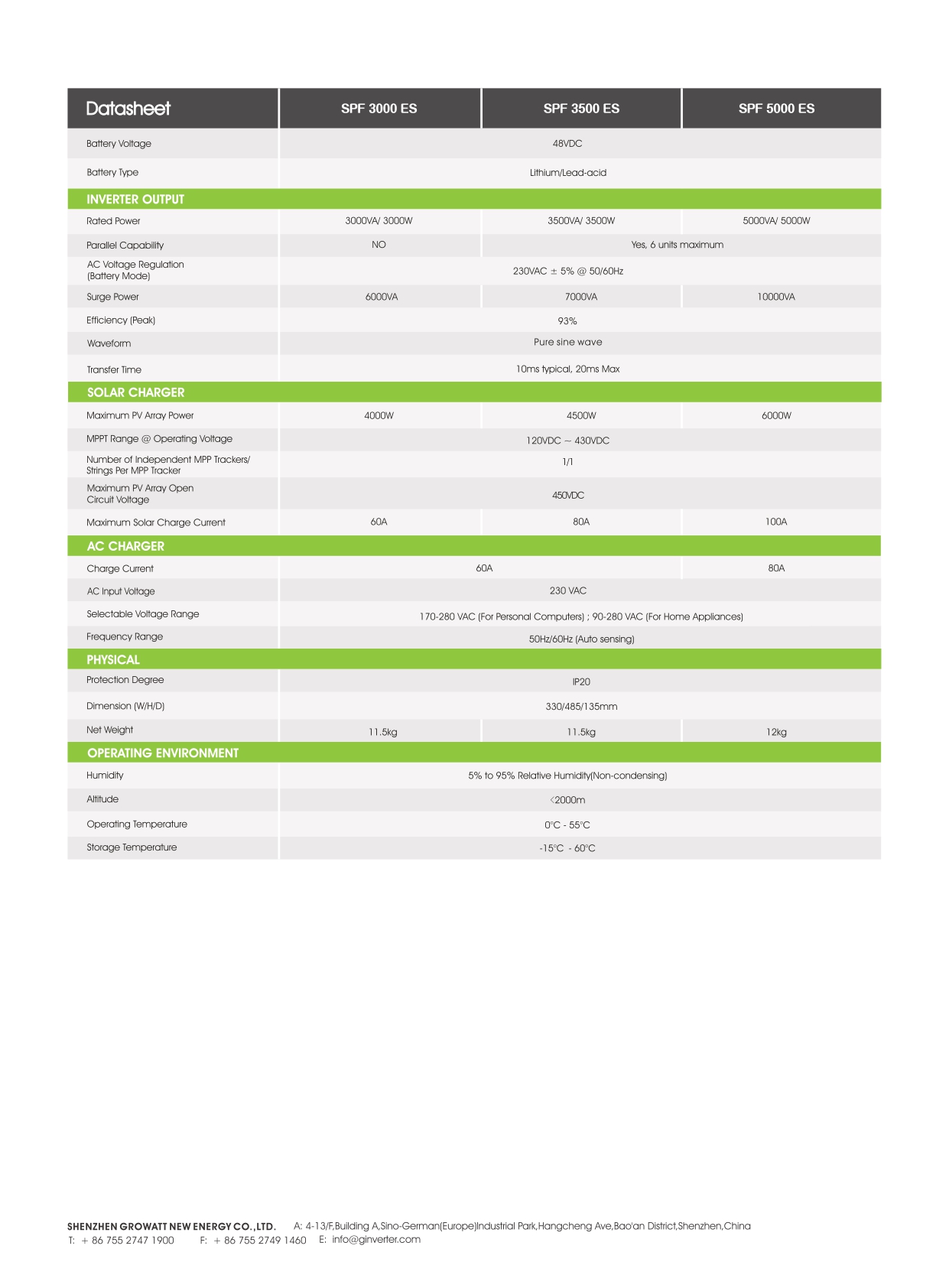

Datasheet
SPF 3000 ES
SPF 3500 ES
SPF 5000 ES
Battery Voltage
48VDC
48VDC
48VDC
Battery Type
Lithium/Lead-acid
Lithium/Lead-acid
Lithium/Lead-acid

INVERTER OUTPUT


Rated Power
3000vA 3000w
350OVA 3500w
5000VA 5000w
Parallel Capability
NO
Yes, 6 units maximum

AC Voltage Regulation(Battery Mode)
230VAC ±5%@ 50/60Hz
230VAC ±5%@ 50/60Hz
230VAC ±5%@ 50/60Hz
surge Power
60000VA
7000VA
10000VA
Efficiency (Peak)
93%
93%
93%
waveform
Pure sine wave
Pure sine wave
Pure sine wave
Transfer Time
10ms typical,20ms Max
10ms typical,20ms Max
10ms typical,20ms Max

SOLAR CHARGER


Maximum Pv Array Power
4000W
4500W 6000W
MPPT Range @ Operating voltage
120VDC ~ 430VDC
120VDC ~ 430VDC
120VDC ~ 430VDC
Number of lndependent MPP Trackers/Strings Per MPP Tracker
1/1 1/1
1/1
Maximum Pv Array OpenCircuit voltage
450VDC 450VDC 450VDC
Maximum Salar Charge Current
60A 80A 100A

AC CHARGER



Charge Current
60A
60A
80A
AC Input Voltage
230 VAC
230 VAC
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC(For Home Appliances)
170-280 VAC (For Personal Computers) ; 90-280 VAC(For Home Appliances)
170-280 VAC (For Personal Computers) ; 90-280 VAC(For Home Appliances)
Frequency Range

50Hz/60Hz (Auto sensing)
50Hz/60Hz (Auto sensing)

PHYSICAL


Protection Degree IP20
IP20
IP20
Dimension(W/F/D) 330/485/135mm
330/485/135mm
330/485/135mm
Net Weight 1 1 .5kg
1 1 .5kg
12kg

OPERATING ENVIRONMENT

Humidity
5%to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
operating Temperature
0℃ - 55℃
Storage Temperature
-15℃ - 60C
