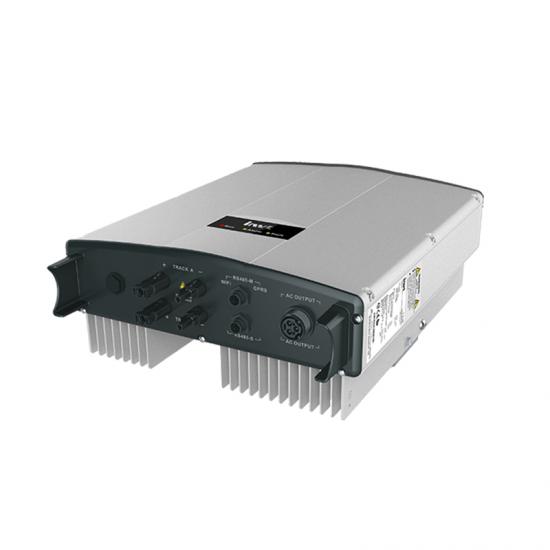

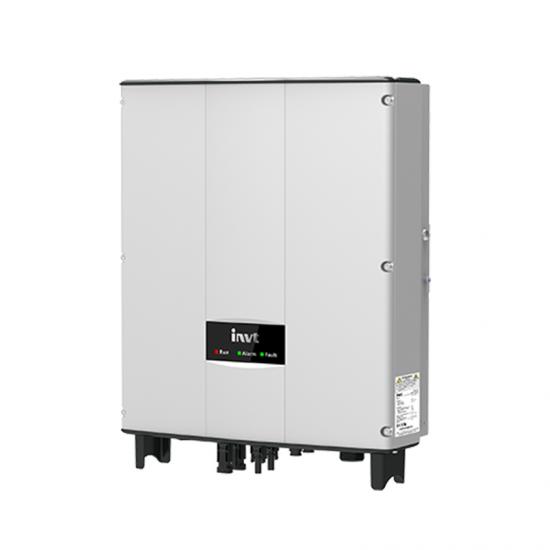

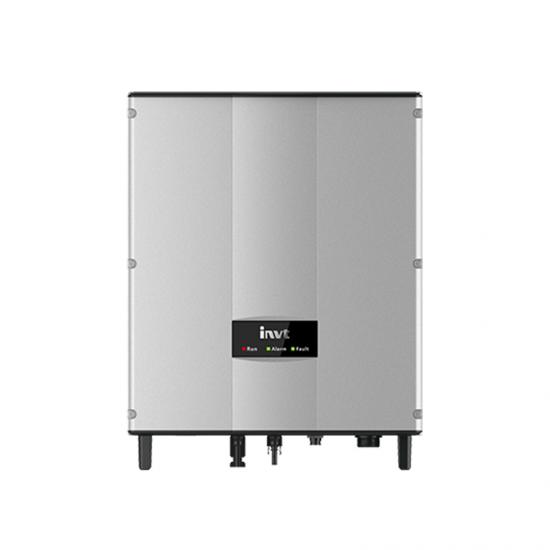

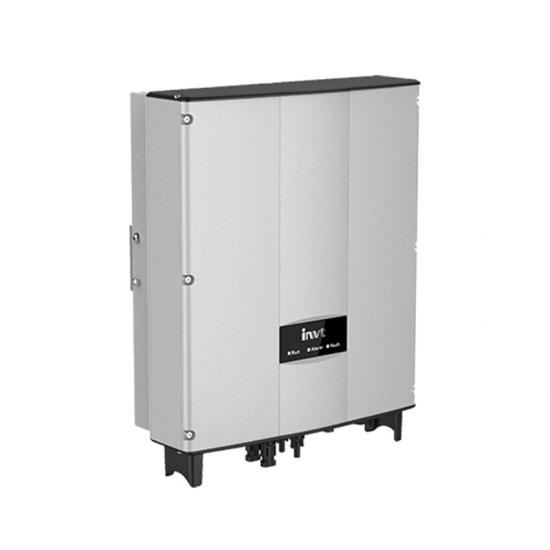

MG series single phase inverter is developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.
Brand:
InvtOrder(MOQ):
1Payment:
T/T ，L/CPrice Range:
350 - 410/$1Color:
SilverShipping Port:
ShanghaiLead Time：
15 working days after receiving paymentProduct Detail
Description
INVT iMars MG series solar inverters are developed for residential. Small in size, light in weight,
easy to install and maintain,and very cost-effective.
Features
Efficiency
Optimized electric control technology,over 98% efficiency;
Advanced dual-MPPT algorithms,suitable for installing solar modules with different angle of dip,max tracking efficiency up to 99.99%;
Safe
IP65 rated and Anti-theft design,suitable for any kind of outdoor environments;
Build-in a high-accuracy lock:records real-time information accuracy;keeps running for 14 days or more once system loses power;
System-level thermal simulaion technologies,to make sure of products' reliability and lifetime;
Simple
Large LCD interface,easy to view and configure;
Perfect diagnosis,protection,records,inquires and other functions,easy troubleshooting
Communication

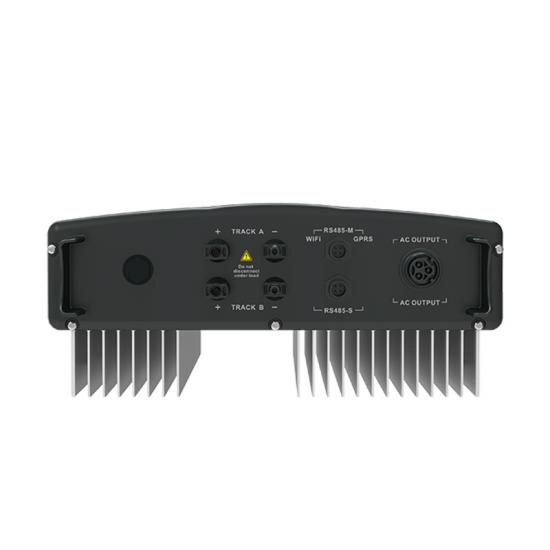

Strong networking,flexible to support RS485,WiFi,Ethernet,GPRS and other communication models;
Parameter sheet
| SPECIFICATION | MG 3-6KW(Dual) | ||||
| ITME NO. | MG3KTL-2M | MG4KTL-2M | MG4K6TL-2M | MG5KTL-2M | MG6KTL-2M |
| INPUT (DC) | |||||
| Max. DC input power (W) | 3600 | 4800 | 5520 | 6000 | 6300 |
| Max. DC input voltage (V) | 600 | ||||
| Starting voltage (V) / | 120/100 | ||||
| Min. opration voltage (V) | |||||
| MPPT Range(V) | 120-550 | ||||
| Number of MPPT / | 2/1 | ||||
| String per MPPT | |||||
| Max. DC current (A) Per MPPT | 9x2 | 12x2 | 13x2 | 15x2 | 16x2 |
| x Number of MPPT | |||||
| DC switch | Optional | ||||
| OUTPUT (AC) | |||||
| Rated output power (W) | 3000 | 4000 | 4600 | 5000 | 6000 |
| Max. AC output current(A) | 16 | 20 | 22 | 24 | 26 |
| Grid voltage range | 230/180~277V | ||||
| Grid frequency range | 50Hz(44~55Hz) / 60Hz(54~65Hz) | ||||
| Power factor | ≥0.99 (at rated power) | ||||
| THDi | < 3% (at rated power) | ||||
| AC output | Single-phase(L,N,PE) | ||||
| SYSTEM | |||||
| Cooling method | Natural cooling method | ||||
| Max. efficiency | 97.70% | 97.70% | 97.70% | 97.80% | 97.80% |
| Euro-efficiency | 96.70% | 96.70% | 96.70% | 96.80% | 96.80% |
| MPPT efficiency | 99.90% | ||||
| Protection rating | IP65 | ||||
| Self-consumption(at night) (W) | <1 | ||||
| Topology | Transformerless | ||||
| Operating temperature range | -25ºC~+60ºC(derate after 45ºC) | ||||
| Relative humidity | 0~95%,no condensation | ||||
| Protection | PV array insulation protection, PV array leakage current protection, Ground fault monitoring, | ||||
| Grid monitoring, Island protection, DC monitoring, Short current protection etc. | |||||
| DISPLAY AND COMMUNICATION | |||||
| Display | LED (standard) / LCD(optional) | ||||
| LCD language | English, Chinese, German, Dutch | ||||
| Communication interface | RS485 (standard) ;WiFi,Ethernet(optional) | ||||
| MECHANICAL PARAMETERS | |||||

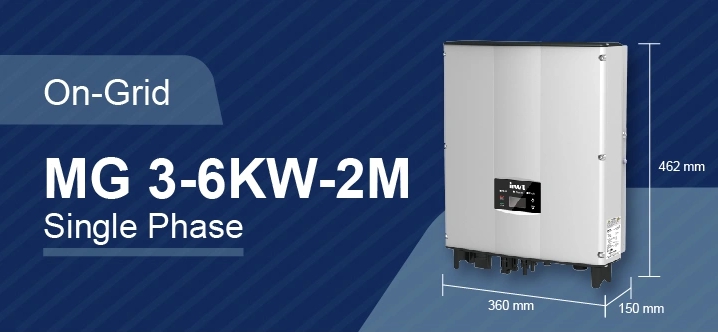

| Dimension (H x W x D mm) | 460x360x150 | ||||
| Weight (kg) | ≤15 | ||||
| Installation | Wall mounting | ||||
| OTHERS | |||||
| DC terminal | MC4 | ||||
| Grid standard | DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012, | ||||
| G83-2 :2012,G59/3-2:2015,IEC 61727(IEC62116),AS/NZS 4777.2:2015, | |||||
| NB/T32004-2013,IEC 60068-2-1:2007,IEC 60068-2-2:2007, | |||||
| IEC 60068-2-14:2009,IEC 60068-2-30:2005,IEC 61683:1999 | |||||
| Safe certificate / | IEC 62109-1 :2010,,IEC 62109-2 :2011,EN 61000-6-2: 2005, | ||||
| EMC category | EN 61000-6-3:2007/A1:2011 | ||||
| Factory warranty (years) | 5 years（standard） | ||||
