Brand:
InvtItem NO.:
BG12KTROrder(MOQ):
1Payment:
TT50% in advance ,pay balance before deliverPrice:
$1005/piecePrice Range:
1 - 10/$1005Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
2-15daysProduct Detail
Description

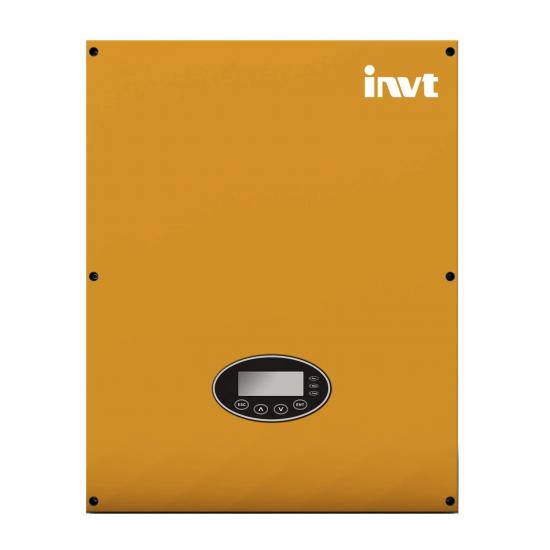

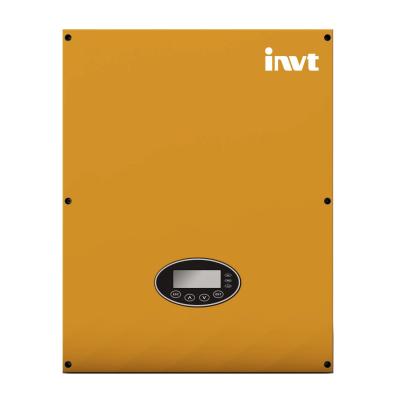

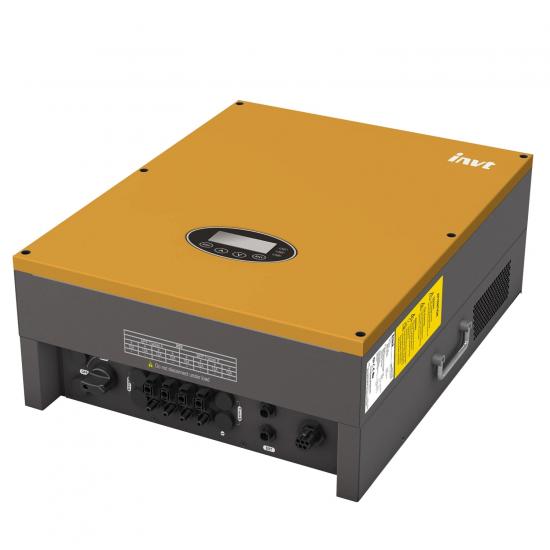

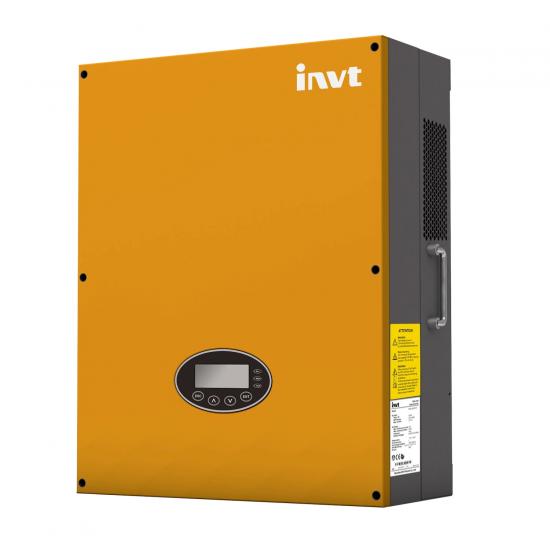

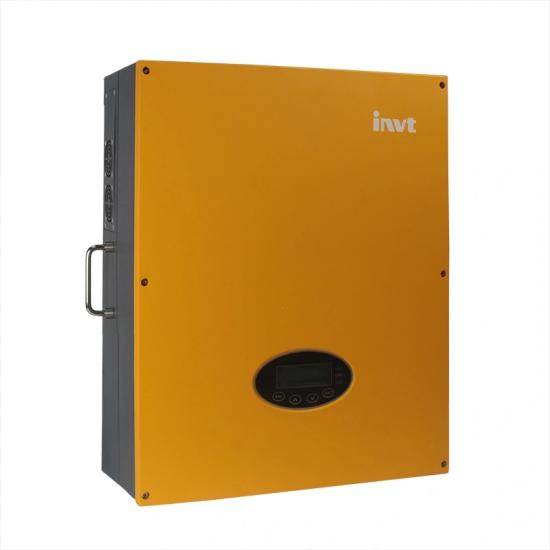

iMars BG 12-17KW three phase on grid inverter has been developed by INVT, specially for commercial users and
distribute grounded power station. This series adopts the latest technologies and combination of T-type three level topology
and SVPWM. It has many outstanding advantages such as power density, modular design, easy installation and maintenance,
and highly cost effective. It also provides more flexible system configuration and solutions for distributed PV power station and
large PV grounded power plants.
Features
Efficient
▪ Integrated intelligent DC combiner and surge protection improve system flexibility and lower the system cost.
▪ Max efficiency is up to 98.9%, wide input voltage range, adapt to all kinds of solar panels and string configuration.
▪ Dual MPPTs work independently and allow unbalanced input power. One MPPT maximum input is up to 60% of Max. DC power.
▪ Adopt the latest technologies and combination of T-type three level topologies and SVPWM.
Reliable
▪ IP65 protection level, suitable for various installation environments.
▪ Bus capacitors consist of advanced film capacitors, designed with the latest thermal simulation technology for longer lifespan.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance.
Smart
▪ AC output power is adjustable between 1-100%.
▪ Smart grid adaptive to meet the requirements of various power grid accesses.
▪ Variety of monitoring modes: APP (one-button registration), large screen data monitoring center, cloud monitoring platform.
▪ Support RS485, GPRS, WIFI, Ethernet.
Simple
▪ High power density, small size.
▪ Modular design, easy to maintain.
Parameter sheet
| SPECIFICATION | BG 12-17kW | ||
| ITME NO. | BG12KTR | BG15KTR | BG17KTR |
| Input (DC) | |||
| Max. DC input power (W) | 14000 | 18000 | 19500 |
| Max. DC input voltage (V) | 1000 | ||
| Starting voltage (V) / | 200/180 | ||
| Min. operation voltage (V) | |||
| MPPT range (V) | 180-800 | ||

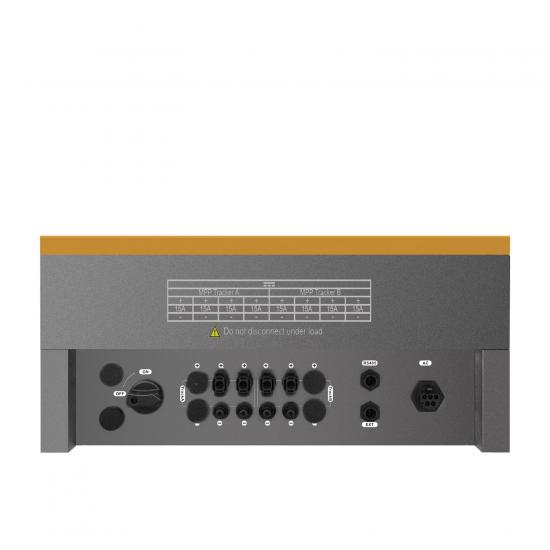

| Quantity of MPPT / | 2/2 | ||
| String per MPPT | |||
| Max. DC current (A) per MPPT x Quantity of MPPT | 19x2 | 21x2 | 23x2 |
| Output (AC) | |||
| Rated output power (W) | 12000 | 15000 | 17000 |
| Max. AC output current (A) | 19.3 | 24.1 | 27.3 |
| Max. output power (W) (PF=1) | 12000 | 15000 | 17000 |
| Max. apparent power（VA） | 12000 | 15000 | 17000 |
| Power factor | -0.8~+0.8(adjustable) | ||
| THDi | <3% (at rated power) | ||
| Nominal output voltage (V) / frequency (Hz) | 230/400;220/380, 3L+N+PE/3L+PE, 50/60 | ||
| Efficiency | |||
| Max. efficiency | 98.20% | 98.30% | 98.30% |
| Euro-efficiency | 97.60% | 97.80% | 97.80% |
| MPPT efficiency | 99.90% | ||
| Protection | |||
| Protection | DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, | ||
| Over-temperature protection, Ground fault monitoring, etc. | |||
| General data | |||
| Display | 3.5 inches LCD display, support backlit display | ||
| LCD language | English, Chinese, German, Dutch | ||
| Communication interface | RS485(standard); WiFi、Ethernet(optional) | ||
| Cooling method | Smart cooling | ||
| Protection degree | IP65 | ||
| Night self consumption (W) | <0.5 | ||
| Topology | Transformerless | ||
| Operating temperature range | -25℃~+60℃(derate after 45℃) | ||
| Relative humidity | 4~100%, condensation | ||

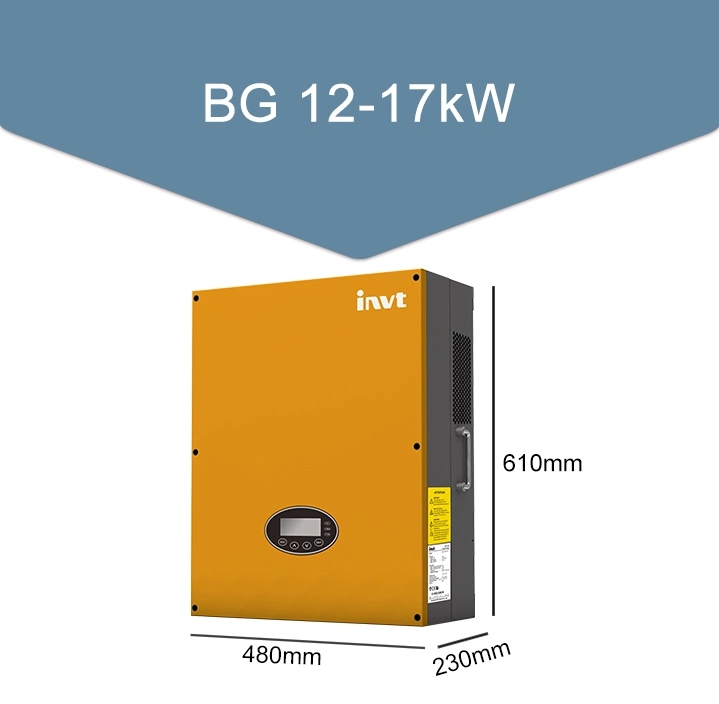

| Dimension (H x W x D mm) | 610x480x230 | ||
| Weight (kg) | 38 | ||
| Grid qualification | DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, IEC 61727(IEC62116), | ||
| AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007, IEC 60068-2-2:2007, | |||
| IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, C10/11:2012 | |||
| Safe certificates / | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | ||
| EMC certificates | |||
| Factory warranty (years) | 5 years（standard） | ||
Certificate
Application
Packing and shipping
Company profile
Goosun Energy Construction Group Co., Ltd is one of the inland famous photovoltaic manufacturing enterprises,
which locates in the beautiful middle part city----Fuyang, which is suitable for investment. The company is founded in 2012,
with registered capital of 6.06 hundred million, covering an area of 33300 square meters. The existing staffs are 288,
country 530 introduces 1 scientific research talent, 4 Doctors, 46 middle and high ranking technical personnels.
The company devotes itself to the development, production and application of solar photovoltaic product, new energy product,
passing multiple international standard authentifications lke three standards and one system ISO9001\ISO14001\OHSAS18001, etc,
obtaning "high interity enterprise", "enterprise that defends the contract with heavy credit", "new high-tech enterprise",
high-tech industrialization demonstration base, multiple patents for invention, technology new type patents, utility type patents, etc.
The company technical force is strong, technology, detecting method is advanced, the product has already obtained Germany
IEC61215\TUV safety protection grade 2 grade, CE certification, CQC certification, UL certification. At present, company main
products include solar photovoltaic cell photovoltaic module, solar street lamp series, new energy charging point. Products have
respectively been exported to Ethiopia in 2013 and to India in 2015. Company products find a good sale in Europe, Latin America,
Australia, Africa, the Middle East, etc countries and regions. In recent years, the company ranks front row in self-support exporting
enterprises in the north of Anhui Province, which is awarded as industry transformation and upgrading advanced unit.
