Brand:
InvtItem NO.:
BG8KTROrder(MOQ):
1Payment:
TT50% in advance ,pay balance before deliverPrice:
$620Price Range:
1 - 10/$620Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
2-15daysProduct Detail
Description

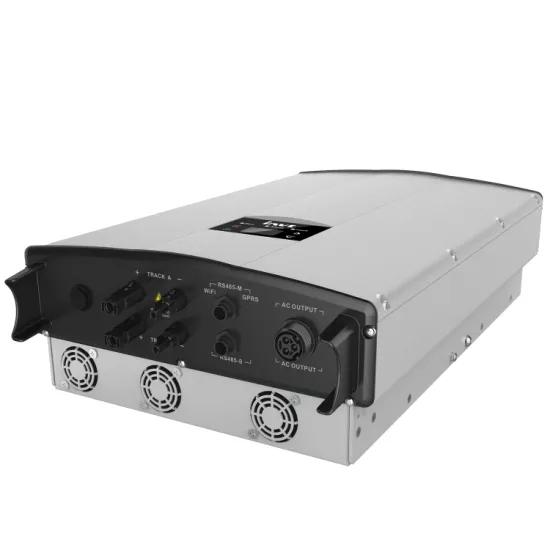

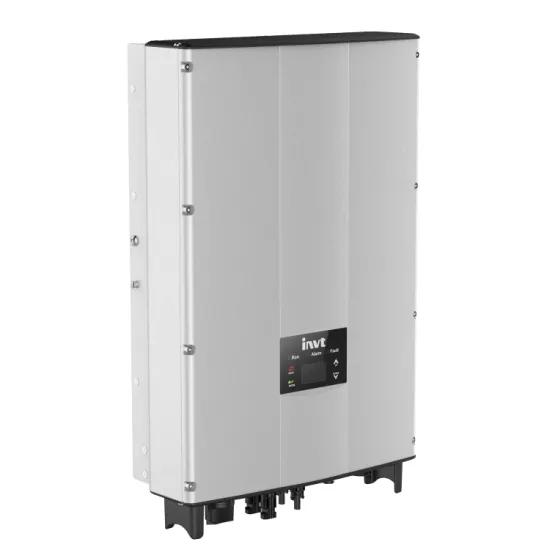

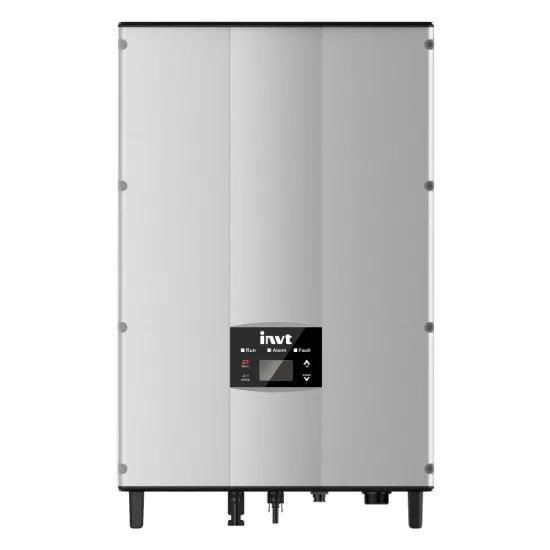

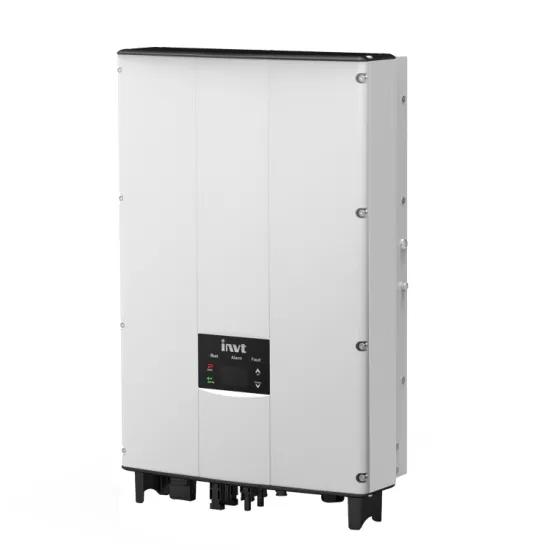

BG series three phase inverter has been developed by INVT, specially for residential and small commercial
customers. This series adopts the latest technologies and combination of T-type three level topology and SVPWM.
It has many outstanding advantages such as compact size, light weight, easy installation and maintenance, and
most of all, competitive prices. It also provides flexible system configuration and monitoring solutions for household
and commercial systems.
Features
Efficient
▪ The core technologies are from Germany.
▪ Wider voltage range, lower starting voltage and higher conversion efficiency (Max efficiency can be reach to 98.3%).
▪ Two MPPT, adapt to the complex environment of roof, improve power generation.
▪ Adopt the latest technologies and combination of T-type three level topologies and SVPWM.
Reliable
▪ Aluminum casing, natural cooling, IP65 protection level.
▪ Adopt internationally famous brand components to ensure the stable operation of inverter.
▪ Insurance by well-known international property insurance company (AIG) for Products /Completed Operations Liability Insurance
Smart
▪ Smart grid adaptive to meet the requirements of various power grid accesses.
▪ Variety of monitoring modes: APP (one-button registration), large screen data monitoring center, cloud monitoring platform.
▪ Support RS485, GPRS, WIFI, Ethernet.
Simple
▪ Home appliance design, easy to operation.
▪ Small in size, light in weight, easy to install by a single person.
Parameter sheet
| SPECIFICATION | BG 8-10kW | |
| ITME NO. | BG8KTR | BG10KTR |
| Input (DC) | ||
| Max. DC input power (W) | 9000 | 11000 |
| Max. DC input voltage (V) | 1000 | |
| Starting voltage (V) / | 220/150 | |
| Min. operation voltage (V) | ||
| MPPT range (V) | 200-800/610 | |
| Quantity of MPPT / | 2/1 | |
| String per MPPT | ||
| Max. DC current (A) per MPPT x Quantity of MPPT | 12x2 | 12.5x2 |
| Output (AC) | ||
| Rated output power (W) | 8000 | 10000 |
| Max. AC output current (A) | 12.6 | 14 |
| Power factor | ≥0.99 (at rated power) | |
| THDi | <3% (at rated power) | |
| Nominal output voltage (V) / frequency (Hz) | 230/400V;220/380V, 3L+N+PE/3L+PE, 50/60 | |
| Efficiency | ||
| Max. efficiency | 98.30% | 98.30% |
| Euro-efficiency | 97.80% | 97.80% |
| MPPT efficiency | 99.90% | |
| Protection | ||
| Protection | DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, | |
| RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc. | ||
| General data | ||
| Display | 2.0 inches LCD display, support backlit display | |
| LCD language | English, Chinese, German, Dutch | |

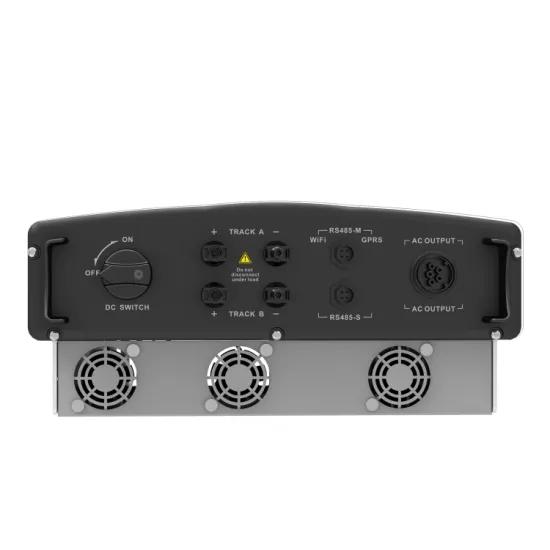

| Communication interface | RS485(standard); WiFi、Ethernet（optional） | |
| Cooling method | Smart cooling | |
| Protection degree | IP65 | |
| Night self consumption (W) | <1 | |
| Topology | Transformerless | |
| Operating temperature range | -25℃~+60℃(derate after 45℃) | |
| Relative humidity | 4~100%, condensation | |

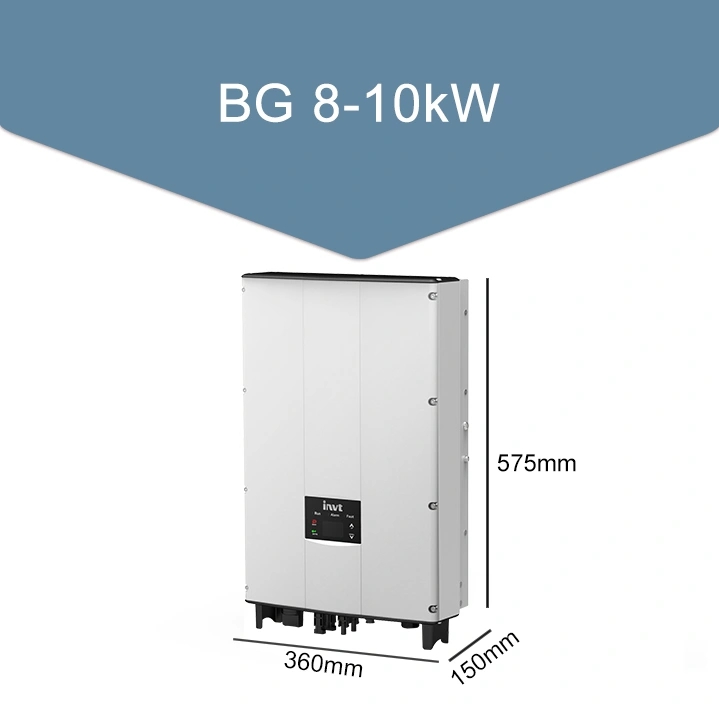

| Dimension (H x W x D mm) | 575x360x150 | |
| Weight (kg) | 23 | |
| Grid qualification | IEC 61727(IEC62116), IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, VDE0126-1-1, | |
| VDE-AR-N4105, G59/3, C10/11, AS/NZS 4777.2:2015, NB/T 32004-2013, PEA, ZVR | ||
| Safe certificates / | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |
| EMC certificates | ||
| Factory warranty (years) | 5 years（standard） | |
Application
Packing and shipping
Company profile
Goosun Energy Construction Group Co., Ltd is one of the inland famous photovoltaic manufacturing enterprises,
which locates in the beautiful middle part city----Fuyang, which is suitable for investment. The company is founded in 2012,
with registered capital of 6.06 hundred million, covering an area of 33300 square meters. The existing staffs are 288,
country 530 introduces 1 scientific research talent, 4 Doctors, 46 middle and high ranking technical personnels.
The company devotes itself to the development, production and application of solar photovoltaic product, new energy product,
passing multiple international standard authentifications lke three standards and one system ISO9001\ISO14001\OHSAS18001, etc,
obtaning "high interity enterprise", "enterprise that defends the contract with heavy credit", "new high-tech enterprise",
high-tech industrialization demonstration base, multiple patents for invention, technology new type patents, utility type patents, etc.
The company technical force is strong, technology, detecting method is advanced, the product has already obtained Germany
IEC61215\TUV safety protection grade 2 grade, CE certification, CQC certification, UL certification. At present, company main
products include solar photovoltaic cell photovoltaic module, solar street lamp series, new energy charging point. Products have
respectively been exported to Ethiopia in 2013 and to India in 2015. Company products find a good sale in Europe, Latin America,
Australia, Africa, the Middle East, etc countries and regions. In recent years, the company ranks front row in self-support exporting
enterprises in the north of Anhui Province, which is awarded as industry transformation and upgrading advanced unit.
FAQ
Q1: Are you a manufacturer or a trading company?
We are both a manufacturer and a trading company. Our factory has great production capacity.
The number of solar panels produced can reach more than 10,000 pieces per day.
Q2: What is your main product?
Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.
Q3: How many employees in your company?
We have about 100~120 employees, including office staff, R&D engineers, production line workers.
Q4: Can we request sample for your products before ordering?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: What is the general lead time?
Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.
Q6: What about the price?
Sample needs The price is negotiable.It can be changed according to your quantity or package. When you are making an inquiry,
please let us know the quantity you want.
